Monitor AMI-II Dual pH/Redox AC

Description

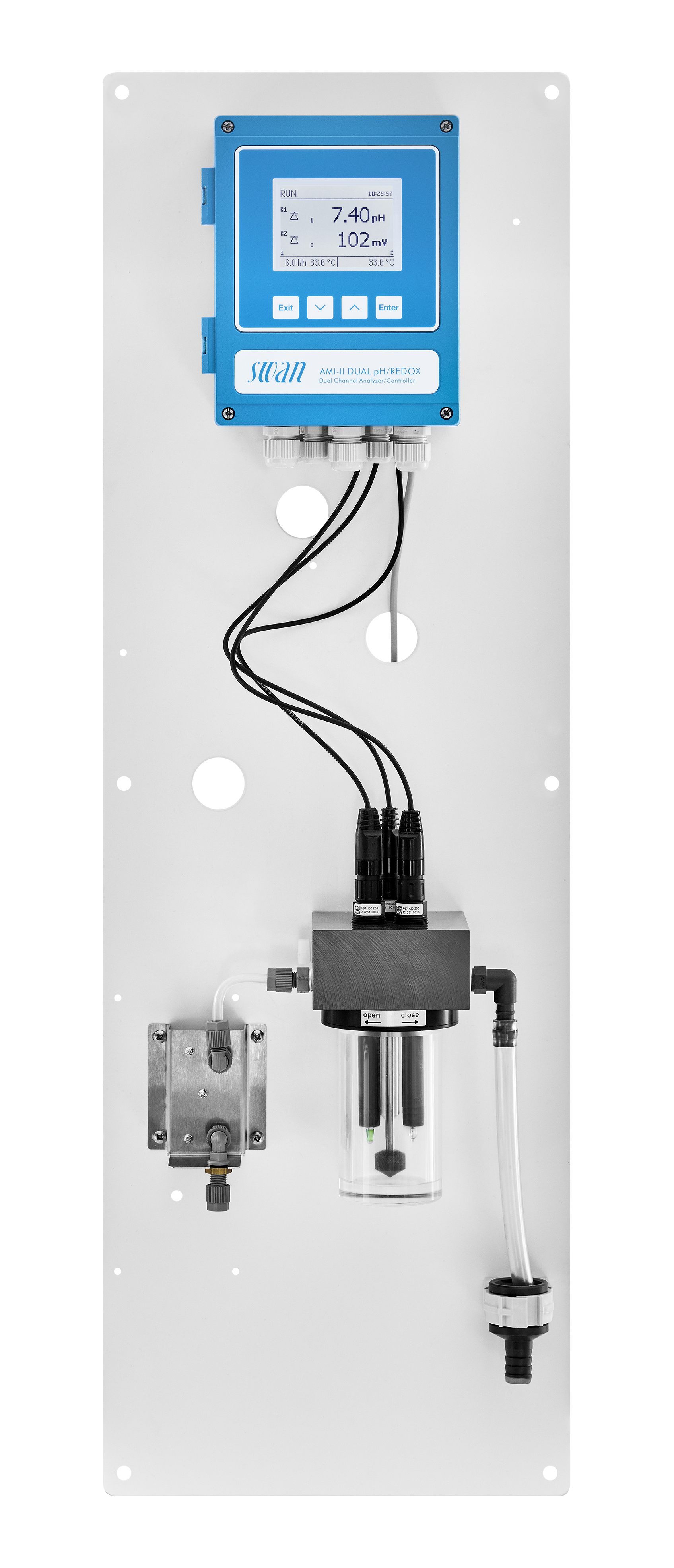

AMI-II Dual pH/Redox is a complete system for the continuous and automatic measurement of pH and redox potential (ORP) in potable water, effluents and cooling water.

• Measuring ranges 1.00 to 13.00 pH and −1500 to +1500 mV.
• Automatic temperature compensation of the measurement according to Nernst.
• Transmitter AMI-II Dual pH/Redox in a rugged aluminum enclosure (IP 66).
• Flow cell M-Flow 10-3PG made of PMMA/PVC with
• - removable sample vessel for easy sensor cleaning and calibration
• - Pt1000 (Class A, DIN EN 60751) temperature sensor.
• Factory tested, ready for installation and operation.
• Selection of sensors
• Use with Swansensors pH and Redox types Standard or AY (combined electrodes with gel/polymer electrolyte).

• Spray nozzle for sensor cleaning.
• Flow measurement with Swansensor U-Flow.
• AMI-II Relay Box for direct power supply and control of dosing devices, e.g. one or two solenoid valves or one motor valve.
