Monitor AMI-II pH/Redox QV-Flow AC

Description

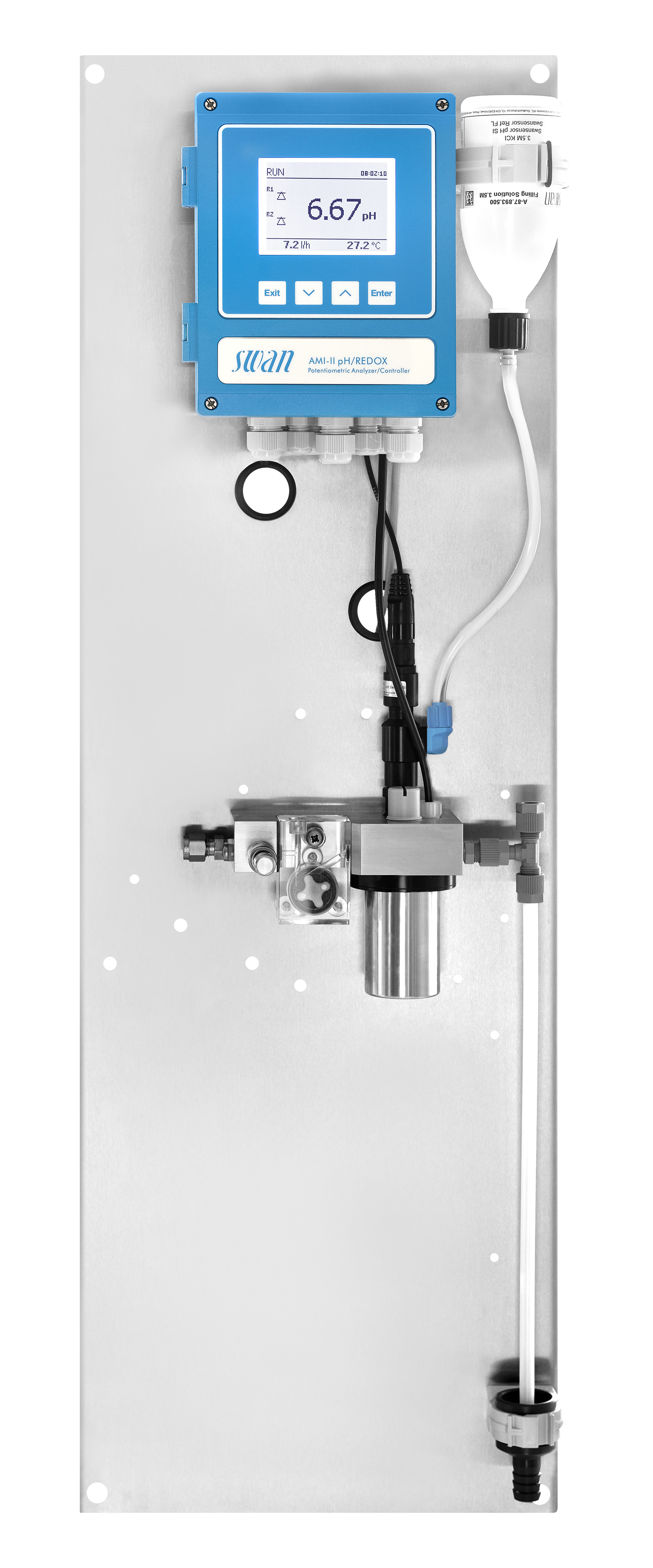

AMI-II pH/Redox QV-Flow is a complete system for the continuous and automatic measurement of pH or redox potential (ORP) in high-purity water. It is the ideal choice for monitoring water quality in water cycles of power and industrial plants, as well as in demineralization plants.

• Measuring range 1.00 to 13.00 pH or −1500 to +1500 mV depending on installed sensor.
• Automatic temperature compensation of the measurement according to Nernst.
• Additional solution temperature compensation for the temperature dependence of the pH of high-purity water (linear or non-linear (ASTM D5128)) selectable.
• Transmitter AMI-II pH/Redox in a rugged aluminum enclosure (IP 66).
• Flow cell QV-Flow 2PG-T made of stainless steel 1.4404 with
• removable sample vessel for easy sensor cleaning and calibration
• integrated needle valve and flow meter for easy setup and measurement validation
• Pt1000 (Class A, DIN EN 60751) temperature sensor.
• Factory tested, ready for installation and operation.

• Use with Swansensors pH or Redox types SI, FL, or Standard.
• Swansensors pH or Redox FL require Swansenor Reference FL and an additional sensor cable (A-87.860.100, A-88.121.120).
• Swansensors pH or Redox Standard require an adapter for installation (A-83.910.120).
