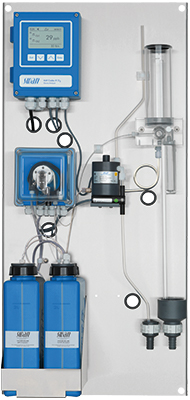

Analyzer AMI Codes-II O3 AC


AMI Codes-II O3 is a proven, low-maintenance monitor for the measurement of trace concentrations down to 1 ppb of ozone in water for pharmaceutical purposes. Using the robust colorimetric standard measurement method (DPD) according to DIN 38404-3, it is ideally suited to reliably prove the continuous protection of water storage systems against microbial growth as well as the absence of ozone before the water is used in a pharmaceutical production process.



  • Measurement range 0-500 ppb suitable for all ozone-sanitized water storage systems
  • No sensitivity loss: reliable results even during longer-term absence of ozone
  • Assured long-term stability through automatic zero point detection as part of every measurement
  • Factory calibrated; simple verification of instrument performance with a filter set
  • Continuous monitoring of sample flow assures integrity of measured data


Your benefits

  • Straight forward instrument set-up and qualification allows rapid plant integration
  • Save time due to easy maintenance and no running-in time after maintenance
  • Confidently protect your production facilities from contamination with ozone-containing water
  • Avoid production interruptions through maximum instrument availability



Keywords: Ozone analyzer, ozone sanitization, water for pharmaceutical purposes, purified water (PW), highly purified water (HPW), water for injection (WFI), water distribution and storage, on-line measurement
